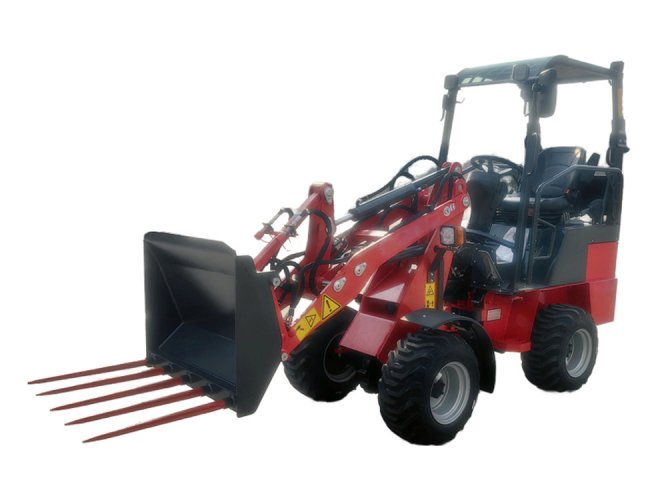

HAIJU HJ8160 Mini Wheel Loader is latest developed, more compact in construction, lighter in the model and therefore more suitable family farm work as well as narrow place.
1. With compact structure, flexible movement and especially1150mm width, it is particularly helpful and useful in narrow place where it is difficult for large machinery to work.
2. Adopted the original Rexroth hydraulic system of the Germany, whose system us electric controlling, guarantees smooth transmission and high reliability.
3. Parallel lifting devices makes the bucket have no angle change in the process of the rising and landing.
4. Whole operable seat and engine hood make it convenient for cleaning and maintenance work.
ENGINE | DIMENSIONS | mm | ||
Model | Perkins 4031-11 | A | Total Length | 3640 |
Type | 3-Cylinder,Water Cooling | B | Total length without bucket | 2700 |
No.of cylinder | 3 | C | Bucket pivot point(to center of ade) | 520 |
Emission | Europe Stage V,EPA 4 | D | Tread | 1328 |
Displacement | 1.13L | E | Rear overhang | 770 |
Power output | 18.4kW/2800rpm | F | Height with operator canopy fixed | 2110 |
DRIVE SYSTEM | H | Seat Height | 1100 | |
Type of drive | Hydrostatic | WORKING RANGE | mm | |
Gear Shift | Electric ,Stepless | J | Total working height | 3080 |
TIPPING LOAD WITH BU CKET (ISO8313) | K | Max.lifting height | 2640 | |
Lifting/ wheel loader straight | 800kg | L | Load-over height | 2285 |
Lifting/wheel loader bent | 400kg | M | Dumping height | 2030 |
ELECTRICAL SYSTEM | N | Reach (at M) | 525 | |
Operative Voltage | 12V | O | Wheelbase | 120 |
Battery | 60Ah | P | Total width | 1150 |
Generator | 40Ah | Q | Track width | 910 |
HYDRAULIC SYSTEM | S | Min.Ground clearance | 180 | |
Drive hydraulic Output | 84L/min | T | Max.radius | 2235 |
Service Pressure | 300bar | U | Radius on the outer edge | 2020 |
Work hydraulic Output | 32L/min | V | Inner Radius | 860 |
Service Pressure | 180bar | W | Articulation angle | 51° |
Boom Lifting Time | 3.1s | X | Roll back angle at max.lift height | 52° |
Function of levelling automatically | Yes | Y | Dumping angle | 35° |
WEIGHTS | BRAKE&TYRE | |||
Tare Weight (standard) | 1420kg | Operating brake | Transmission drum brake | |
Working weight in the bucket | 650kg | Parking brake | Service and parking | |
Max.Lifting force | 900kg | Tyre | 26x12-12 | |
REFILLING CAPACITY &SPEED & BUCKET | ||||
Fuel Tank Capacity | 26L | Speed | 0-12km/h | |
Hydraulic oil tank Capacity | 40L | Bucket | 0.23m³ | |
