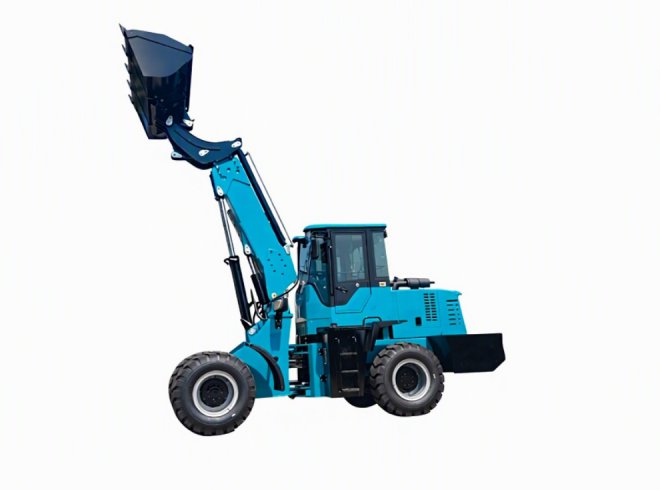

HAIJU 2.5Ton telescopic loader ZL25 is a versatile and efficient material handling solution. It can provide greater range and flexibility for various application scenarios.
The telescopic wheel loader ZL25 has strong lifting capacity and can easily handle heavy loads.
Its articulated steering system ensures good maneuverability in confined spaces.
The quick connection system enables rapid replacement of accessories and improves productivity.
Operator comfort prioritizes ergonomic controls and a spacious cab.
The telescopic wheel loader ZL25 is ideal for construction, agriculture, and warehouse operations, providing reliable performance and improving productivity.
The ZL25 telescopic loader is the perfect choice for efficient and versatile material handling operations.
1.Overall specification | 5.Engine | |||
Dimension （mm） | 7350*2000*2850 | Model | Yunnei | |
wheel base （mm） | 2600 | type | turbocharging | |
tread （mm） | 1560 | engine power (KW) | 76 | |
Min ground clearance (mm) | 320 | speed rate（r/min） | 2400 | |
2.Performance parameter | cylinders-bore diameter | 4-102 | ||
system pressure （MPa） | 16 | 6.Transmission system | ||
operating weight（Kg） | 6200 | gear box | power shift | |
max Speed rate（Km/h） | 35 | gear shift | forward 2,reverse 2 | |
max climbing ability（°） | 35 | hydraulic torque converter | 280 | |
min turning radius（mm） | 5330 | 7.Axle | ||
3.telescopic specification | type | Big hub reduction axle | ||
max lifting height（mm） | 7000 | 8.Tire | ||
max discharge distance (mm) | 4800 | size | 16/70-20 | |
nearest/farthest unloading distance（mm） | 2300/3800 | driving braking | 350 | |
max unloading distance（mm） | 1600 | driving braking | oil brake,brake clamp and disc. | |
capacity (kg) | 2500 | parking braking | hand brake | |
max rated load at maximum reach（mm） | 1000 | 9.Other | ||
bucket width（mm） | 2000 | drive type | 4x4 | |
4.Steering system | variable speed type | hydraulic | ||
type | articulated full hydraulic steering | |||
steering angle（°） | 38 | |||
