Loader is a kind of earthwork construction machinery widely used in roads, railways, construction, hydropower, ports, mines and other construction projects. It is mainly used for shoveling bulk materials such as soil, sand, lime, and coal, and can also be used for ore , Hard soil, etc. for light shovel and digging operations. Different auxiliary working devices can also be used for bulldozing, lifting and other materials such as wood loading and unloading operations

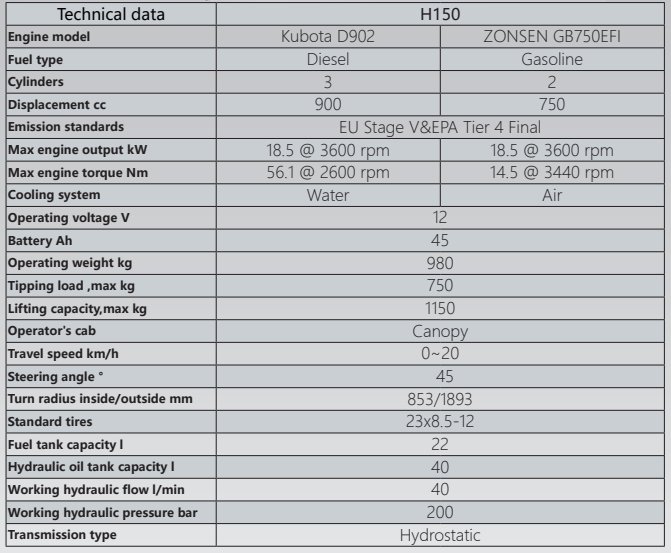

Technical data | H150 | |
Engine model | Kubota D902 | ZONSEN GB75OEFI |
Fuel type | Diesel | Gasoline |
Cylinders | 3 | 2 |
Displacement (cc) | 900 | 750 |
Emission standards | EU Stage V&EPA Tier 4 Final | |
Max engine output (KW) | 18.5 @3600 rpm | 18.5 @3600 rpm |
Max engine torque (Nm) | 56.1 @ 2600 rpm | 14.5 @3440 rpm |
Cooling system | Water | Air |
Operating voltage (V) | 12 | |
Battery (Ah) | 45 | |
Operating weight (kg) | 980 | |
Tipping load ,max (kg) | 750 | |
Lifting capacity,max (kg) | 500 | |
Operator's cab | Canopy | |
Travel speed (km/h) | 0~20 | |
Steering angle (°) | 45 | |
Turn radius inside/outside (mm) | 853/1893 | |
Standard tires | 23x8.5-12 | |
Fuel tank capacity (L) | 22 | |
Hydraulic oil tank capacity (L) | 40 | |
Working hydraulic flow (l/min) | 40 | |
Working hydraulic pressure (bar) | 200 | |
Transmission type | Hydrostatic | |
1200kg
4408x1160x2510mm
18.4KW/25HP
500kg
3100*1150*2100
750AH/60V
400kg
900 AH 60 V
900KG
600kg
300AH 48V
1930kg
800-1000kg
960AH 96V
3200kg
1500-2000kg
42/55 KW
4400kg
5000kg
200 KW/H
4x4WD
