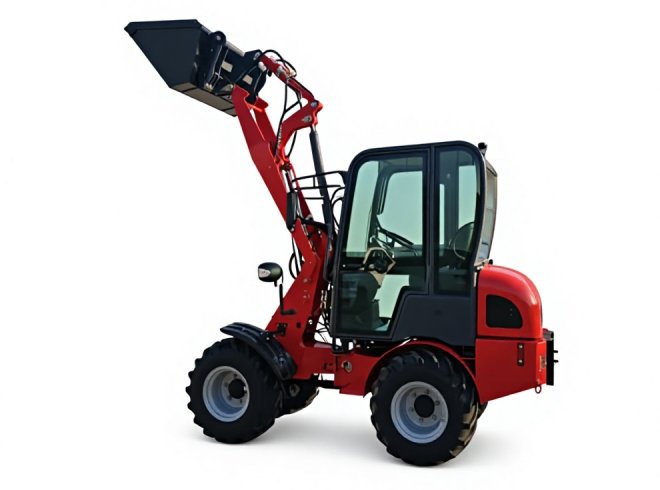

Hydrostatic Mini Wheel Loader D35 Function and Features:
1. Hydrostatic mini loader D35 with Perkins diesel engine Euro 5 tier / EPA4 tier,with stronger torsion.
2. Hydrostatic wheel loader D35 with original stronger Italy Bondioli Pavesi static hydraulic pump and electric control valve and joystick;
3. Wheel loader mini D35 bigger piston motor from Italy with stronger torsion. with high/low speed rate.
4. Mini wheel loader D35 have special design heavy duty axle.
5. Wheel loader D35 with bigger radiator to keep hydraulic system and engine working for long time.
6. Mini loader D35 with new articulated and steering style, operation more stably;
7. Hydrostatic wheel loader D35 min width 1280mm, working in narrow space easily;
8. Hydrostatic small wheel loader D35 have 54° big turning angle, much more flexible to operate;
9. Small mini wheel loader D35 with side support and enhanced working devices ensure safe;
10. Small wheel loader D35 with either multi-integrated joystick or hydraulic arm damping system.
11. Small loader D35 with more stronger frame to bear heavy duty working.
12. Hydrostatic wheel mini loader D35 easy maintenance and service.
Parameter/Specification | |
Engine | Perkins |
Rated power (kw) | 18.4kw (25hp) (bigger torsion) |
Rated speed(rpm) | 2200 |
External dimensions: length (without bucket)* width * high | 3600(3200)*1280*2300(mm) |
Operating weight(kg) | 2100 |
Max travel speed(km/h) | 20 |
Performance | |
Rated operating capacity(kg)Bucket/Fork | 1200 |
Tip-Over load (kg) | 1500 |
Max. dump height (mm) | 2200 |
Reach at max.dump(mm) | 510 |
Max.gradeability | 30% |
Wheel Base(mm) | 1574 |
Radius of turn (inside)(mm) | 1106 |
Radius of turn (outside)(mm) | 2625 |
Bucket capacity(m³) | 0.48 |
Tire | 31*15.5-15/ narrow 29x12.5-15 |
Hydraulic oil tank | 35L |
Diesel tank | 40L |
Hydrostatic transmission | Italy Piston pump and piston motor |
Working / walking pressure (mpa) | 16/20 |
