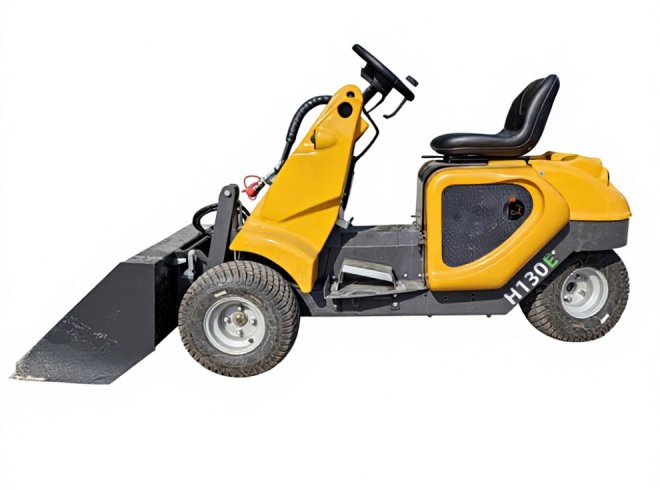

H130E is electric 3 wheel mini loader latest developed, more compact in construction, lighter in the model and therefore more suitable family farm work as well as narrow place.
Electric 3WD mini wheel loader H130E ith compact structure, flexible movement and especially 1000mm width, it is particularly helpful and useful in narrow place where it is difficult for large machinery to work.
Electric 3WD small wheel loader H130E adopted the original hengyuan hydraulic system of the Italy, whose system us electric controlling, guarantees smooth transmission and high reliability.
3 mini loader electric parallel lifting devices makes the bucket have no angle change in the process of the rising and landing.
Electric mini wheel loader H130E whole operable seat and engine hood make it convenient for cleaning and maintenance work.
Battery Type | Ternary Lithium Battery | ||
Battery capacity/kWh | 14kwh | ||
Drive motor/kW | Shared with pump motor | ||
Pump motor/kW | 10 | ||
Charging voltage/V | 110/220 | ||
Charging time/h | 2 | ||
Operating voltage V | 48 | ||
Battery Ah | 280 | ||
Operating weight kg | 500 | ||
Tipping load ,max kg | 400 | ||
Lifting capacity,max kg | 350 | ||
Operator's cab | None | ||
Travel speed km/h | 0~15 | ||
Steering angle ° | 0~360 | ||
Turn radius inside/outside mm | 0/993 | ||
Standard tires | 18x9.50-8 | ||
Hydraulic oil tank capacity L | 15 | ||
Working hydraulic flow L/min | 20 | ||
Working hydraulic pressure bar | 160 | ||
Transmission type | Hydrostatic | ||
Tires size | Height | Width | |
18x9.50-8 | 1304 | 993 | |
1200kg
4408x1160x2510mm
18.4KW/25HP
500kg
3100*1150*2100
750AH/60V
400kg
900 AH 60 V
900KG
600kg
300AH 48V
1930kg
800-1000kg
960AH 96V
3200kg
1500-2000kg
42/55 KW
4400kg
5000kg
200 KW/H
4x4WD
