HJ18 mini excavator features Main Features
1)This HJ18 1.5 ton excavator machine comes with Laidong engine . One year warranty on parts , , reinforced front dozer blaze, swing arm system to make digging next to Large objects /structures possible.
2) 4 leg canopy-roof, it is very rugged.Closed cabin is available also.
3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
4) Auger, grab, hydraulic hammer, narrow bucket... can be installed on this excavator, efficient and wide-range use.

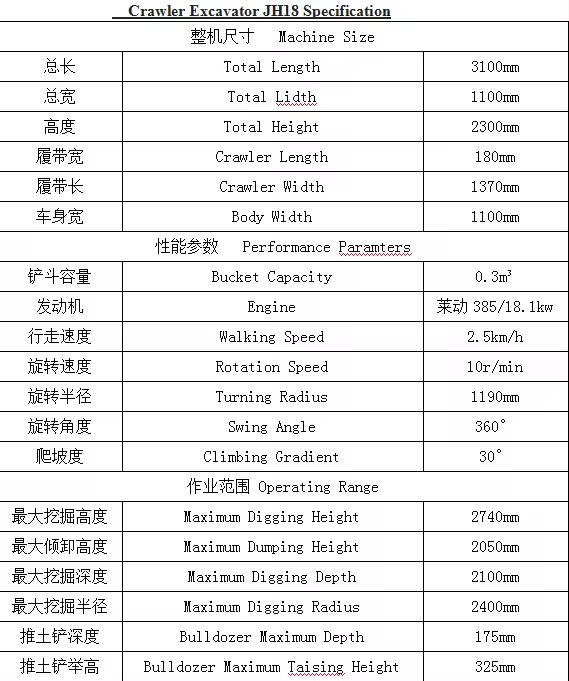

整机尺寸 Machine Size | ||
总长 | Total Length | 3100mm |
总宽 | Total Width | 1100mm |
高度 | Total Height | 2300mm |
履带宽 | Crawler Length | 180mm |
履带长 | Crawler Width | 1370mm |
车身宽 | Body Width | 1100mm |
性能参数 Performance Parameters | ||
铲斗容量 | Bucket Capacity | 0.3m³ |
发动机 | Engine | 莱动385/18.1kw |
行走速度 | Walking Speed | 2.5km/h |
旋转速度 | Rotation Speed | 10r/min |
旋转半径 | Turning Radius | 1190mm |
旋转角度 | Swing Angle | 360° |
爬坡度 | Climbing Gradient | 30° |
作业范围 Operating Range | ||
最大挖掘高度 | Maximum Digging Height | 2740mm |
最大倾卸高度 | Maximum Dumping Height | 2050mm |
最大挖掘深度 | Maximum Digging Depth | 2100mm |
最大挖掘半径 | Maximum Digging Radius | 2400mm |
推土铲深度 | Bulldozer Maximum Depth | 175mm |
推土铲举高 | Bulldozer Maximum Raising Height | 325mm |
