For our wheel excavator 8.5Ton,it is runing faster with hydraulic transmission,and for our superior quality hydraulic system,the dig force is bigger and performance is good.

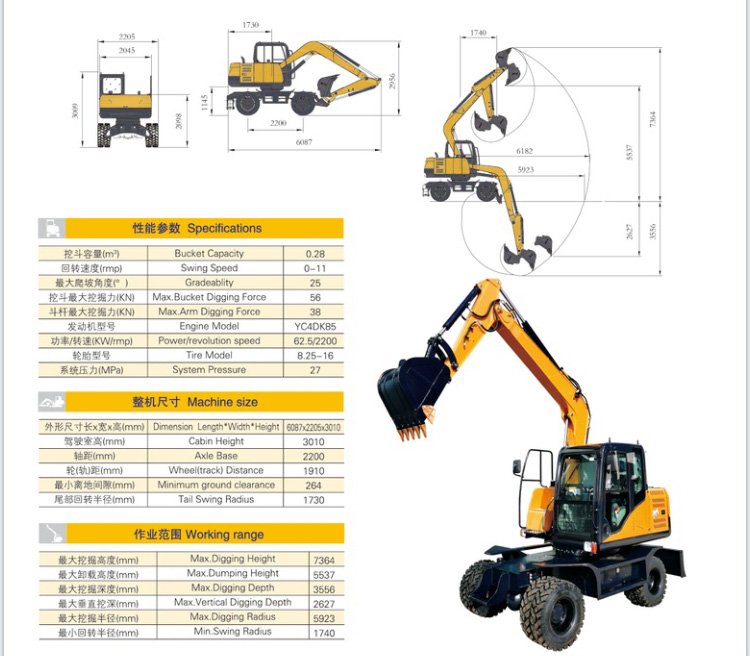

| Model | YC4DK85 62.5kw/ 2200rpm | |
| Type | Electronic injection, water cooled, natural intake | |
| No. of cylinder | 4 | |
| Bucket volume | m³ | 0.28 |
| Tire size | 8.25-16 | |
| System pressure | Mpa | 27 |
| Swing Speed | r/min | 0-11 |
| Traveling Speed | km/H | 0-28 |
| Grade ability | ° | 25 |
| Bucket Digging Force | kN | 56 |
| Arm Digging Force | kN | 38 |
| Overall Length | mm | 6087 |
| Overall Width | mm | 2205 |
| Overall Height | mm | 3010 |
| Ground clearance | mm | 264 |
| tread | mm | 1910 |
| wheel base | mm | 2200 |
| Operation Weight | KG | 8500 |
| Max. Digging Radius | mm | 5923 |
| Max. Digging Depth | mm | 3556 |
| Max. Vertical Digging Depth | mm | 2627 |
| Max. Digging Height | mm | 7364 |
| Max. Dumping Height | mm | 5537 |
| Tail Swing Radius | mm | 1740 |
