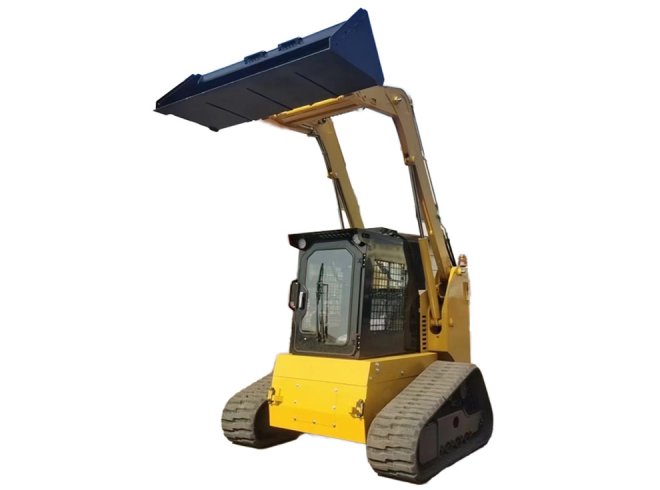

HAIJU Tracked skid steer loader TS125 features compact structure, flexible movement, convenient operation, efficient working, powerful function and simple maintenance. It is especially applicable to urban infrastructure, roads or construction sites, workshop, warehouse, dock, ship deck, even inside of cabin and other places with narrow space and frequently-changed operational contents. By changing different devices, it realizes the shoveling and carrying, lifting, digging, drilling, crushing, scraping,scarification, snow blowing, deicing, road sweeping, pavement milling, and compaction operation.
TS125 | |
额定载重 Rated capacity (kg) | 1500 |
最大行驶速度 Max speed rate (km/h) | 9/18 |
液压流量 Hydraulic flow rate (L/Min) | 88 |
大流量系统流量 Big flow rate | 140 |
履带型号 Track size | 450X86 |
额定功率 Engine power (Kw) | 103 |
燃油箱容量 Diesel oil tank volume (L) | 90 |
操作重量 Operating weight (kg) | 4800 |
铲斗容积 Bucket Volume (m³) | 0.6 |
主要技术参数 | TS125 | |
A | 最大操作高度Overall operating height (mm) | 4070 |
B | 铲斗销高度Height to bucket hinge pin (mm) | 3280 |
C | 驾驶室顶高度 height to top of cab (mm) | 2160 |
D | 铲斗知其底部的最大高度Height to bottom of level bucket(mm) | 3140 |
E | 不带铲斗总长Without bucket length（mm） | 3000 |
F | 带铲斗总长overall length with bucket(mm) | 3700 |
G | 最大高度卸载角度 Dumping angle at maximum height(°) | 40 |
H | 卸料高度Dumping height(mm) | 2500 |
I | 卸载距离 Dumping reach(mm) | 700 |
J | 铲斗在地面的反转角度 Rollback o bucket on ground(°) | 30 |
K | 铲斗在最高时翻转角度 Rollback of bucket at full height(°) | 104 |
L | 轴距 Wheelbase(mm) | 1500 |
M | 离地间隙Ground clearance(mm) | 200 |
N | 离去角Angle of departure(°) | 20 |
O | 不带铲斗时转弯半径 Front turning radius without bucket(mm) | 1365 |
P | 前转弯半径Front tuning radius(mm) | 2200 |
Q | 后转弯半径Rear tuning radius(mm) | 1742 |
R | 尾部长度Rear axle to bumper (mm) | 938 |
S | 轮距（标准轮胎）Tread width (mm) | 1654 |
T | 车宽（标准轮胎）Width (mm) | 2124 |
U | 带标准铲斗宽度 Bucket width (mm) | 2160 |
