Thanks to compact dimensions and excellent control, HAIJU Wheel Dumpers cannot only work in manay grounds, but also tackle different problemss. The hydraulic drive system makes operation more comfortable and easier.
Operators can learn how to use the machines much more quickly. The individual wheel motor gives an excellent ground clearance that can make machines to be operated in restricted areas. Reliability, durability and low maintenance makes wheel dumpers a good investment.

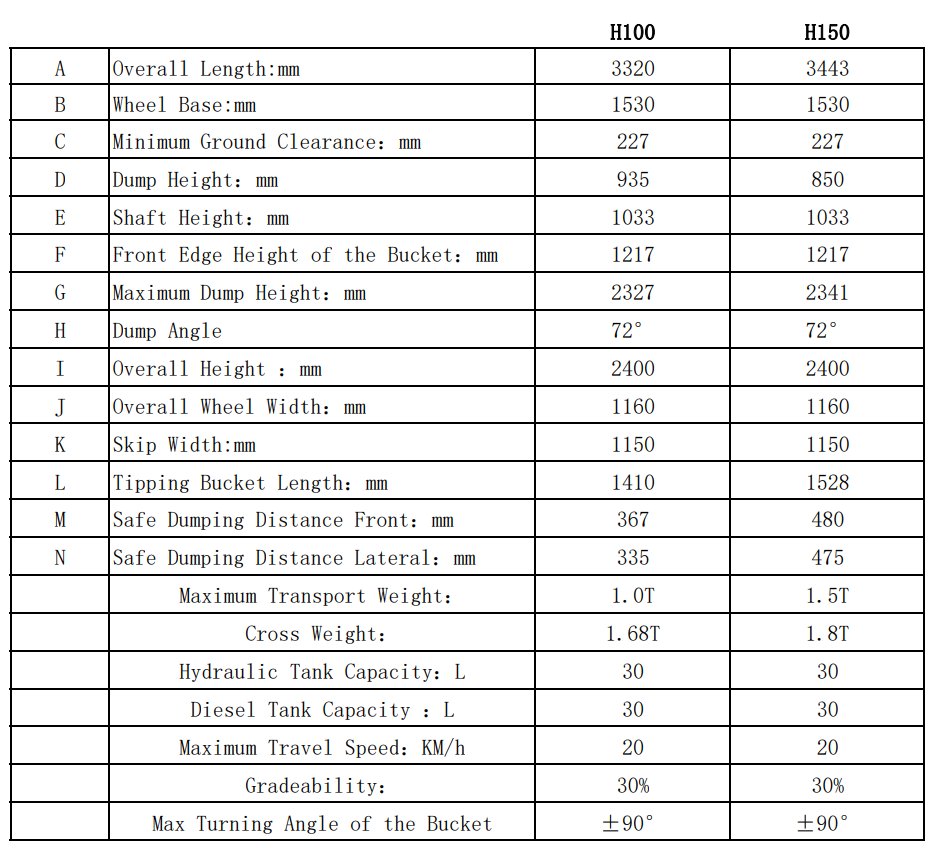

| Model | H100 | H150 | |
| A | Overall Length:mm | 3320 | 3443 |
| B | Wheel Base:mm | 1530 | 1530 |
| C | Minimum Ground Clearance: mm | 227 | 227 |
| D | Dump Height: mm | 935 | 850 |
| E | Shaft Height: mm | 1033 | 1033 |
| F | Front Edge Height of the Bucket: mm | 1217 | 1217 |
| G | Maximum Dump Height: mm | 2327 | 2341 |
| H | Dump Angle | 72° | 72° |
| I | Overall Height: mm | 2400 | 2400 |
| 丁 | Overall Wheel Width: mm | 1160 | 1160 |
| K | Skip Width:mm | 1150 | 1150 |
| L | Tipping Bucket Length: mm | 1410 | 1528 |
| M | Safe Dumping Distance Front: mm | 367 | 480 |
| N | Safe Dumping Distance Lateral: mm | 335 | 475 |
| Maximum Transport Weight: | 1.0T | 1.5T | |
| Cross Weight: | 1.68T | 1.8T | |
| Hydraulic Tank Capacity: L | 30 | 30 | |
| Diesel Tank Capacity:L | 30 | 30 | |
| Maximum Travel Speed: KM/h | 20 | 20 | |
| Gradeability: | 30% | 30% | |
| Max Turning Angle of the Bucket | ±90° | ±90° | |
