HJB10

Shipping weight :500kg
Dimensions L x W x H (mm) :1680 x 840 x 1380
fuel tank capacity :5.6L

1.Wide range of application, simple structure and stable transmission. It is widely used for transportation with complete terrain and narrow roadbeds such as farmland, orchard, greenhouse, seedbed, beach, snow field, construction site, etc.

2.The steel wire rubber track is more wear-resistant and has a longer service life. High traction, good climbing ability and strong transportation ability.

3.Electric start, centralized handle, easy to operate. The working radius is small, and it can be operated in a narrow area.

4.Hydraulic lifting and unloading can reduce labor intensity and improve transportation efficiency.

5.Equipped with low fuel alarm and battery power microcomputer display, which can be checked at any time, which is convenient and time-saving.

6.Multifunctional accessories such as cargo box, truck crane, spraying medicine, mixer, grinder, and remote control can be customized.

Share to:
product details

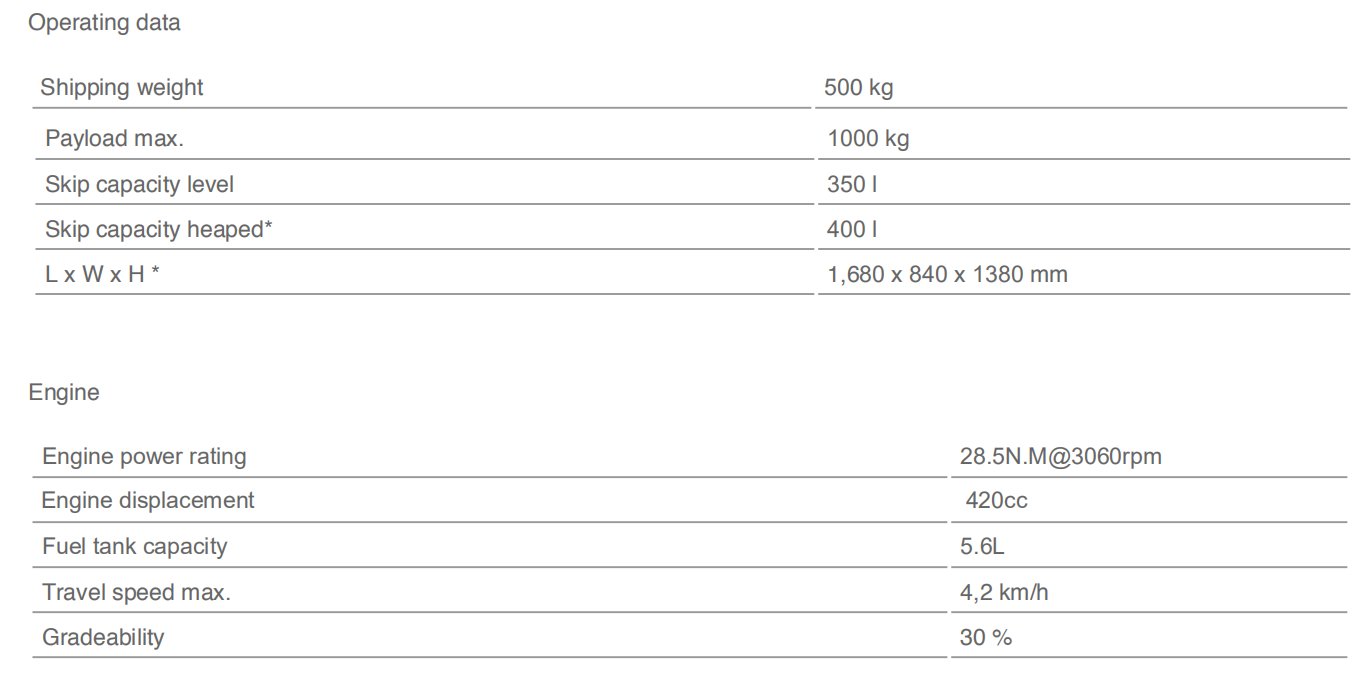

Technical data

HJB10

Engine manufacturer

HONDA GX390

Briggs & Stratton XR2100

Fuel type

Gasoline

Cylinders

1

Displacement

389cc

420cc

Emission standards

EU Stage V

Euro stage v&EPA Tier 4 Final

Max engine output

8.7kW@3600 rpm

10kW@3600 rpm

Max engine torque

26.5Nm@2500 rpm

28.5Nm@3060 rpm

Cooling system

Air

Operating voltage

12V

Battery

45Ah

Shipping weight

500kg

Tipping type

Front tipping

Payload max

1000kg

Travel speed

0~4.2km/h

Max.gradeability

30%

Fuel tank capacity

5.6L

Hydraulic oil tank capacity

28L

Hydraulic flow

21.6L/min

Hydraulic pressure

160bar

Transmission type

Hydrostatic
