No.6 Hongkong Middle Road, Qingdao, China

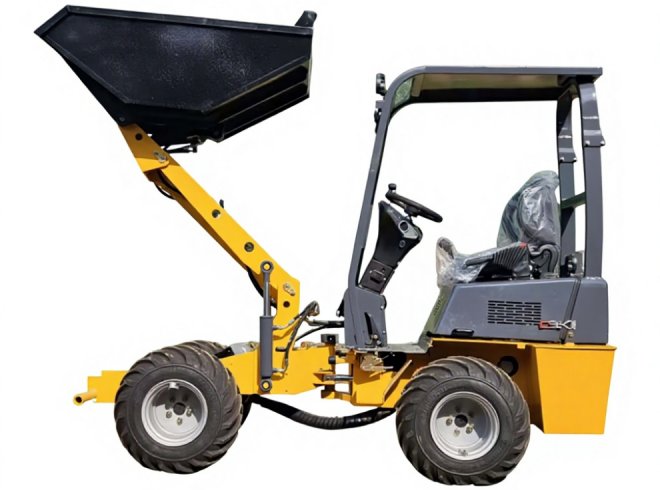

1.Wheel dumper HJD10 install Perkins power features low energy consumption and environmental protection.
2.4 wheel mini dumper HJD10 is closed hydrostatic system is from Italy, feature of lower energy consumption.
3.Wheeled dumper HJD10 lift bucket high tip 1570mm.
4.Mini wheel dumper hydraulic HJD10 use integrated multi-functional control handle makes operation simple.
5.Mini dumper 4 wheel drive HJD10 monitor has the LED showing of fuel level by stages.
6.Diesel mini dumper wheeled HJD10 unique frame hinge type is compacted and durable.
7.Mini wheel dumper HJD10 use widely applied broad-face tyre and damping seat is safe and comfortable.
8.Mini dumper with wheels HJD10 small working radius, mobile and flexible.
Engine | Perkins |
Model | 403J-11 |
Rated power | 18.4kw(24.8BHP) |
Rated speed | 2800rpm |
Maximum torque | 67Nm |
The ratio of fuel consumption | 252g/kwhr |
Emission standard | Euro V/ EPA4 tier |
Option engine | Kubota/Xinchai |
Hydrostatic system | |
Piston pump | Italy Bondioli / PWG |
Dimensions | |
Body length with bucket/without bucket | 2900mm |
Body width | 1150mm |
Body height | 2150mm |
Minimum ground clearance | 200mm |
Maximum high tip height | 1570mm |
Dumping reach | 500mm |
Wheel base | 1340mm |
Performance parameters of the machine | |
Bucket | 0.5m3 |
Bucket capacity | 800-1000kg |
Operating weight | 1500kg |
Driving speed | 0-12km/h |
Minimum turning-circle radius | |
Outside face of bucket | 1989mm |
Outside face of tyre | 1469mm |
Tyre specifications | 26x12-12/27*8.5-15TL 10.0/75-15.3 |
Maximum turning angle | ±68° |
