1. Telescopic arm design: It has a telescopic arm that can extend and retract, enabling it to reach different heights and distances. This greatly expands its working range compared to traditional forklifts.
2. High versatility: It combines the functions of a forklift and a crane. It can not only lift and move goods like a forklift but also perform operations similar to a crane, such as lifting and placing heavy objects in high or hard-to-reach positions.
3. Good stability: Equipped with stabilizers and advanced control systems, it can maintain stability during operation, even when handling heavy loads at extended reaches.
4. Adaptability to various terrains: Its tires or tracks are designed to provide good traction on different surfaces, making it suitable for both indoor and outdoor operations, including rough construction sites.

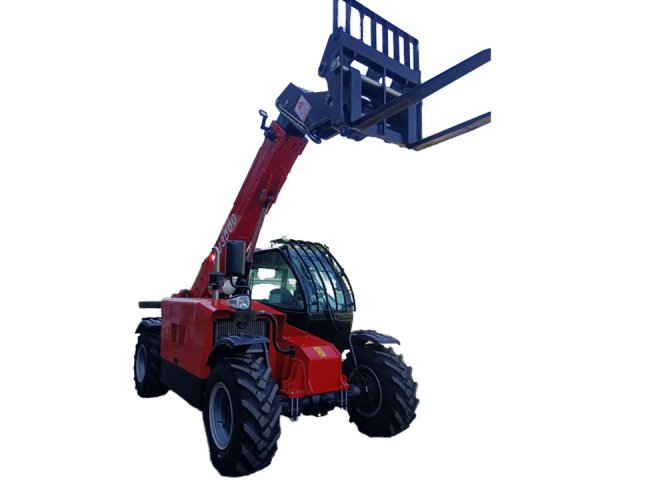

Product model | HJ3500 |
performance parameter | |
Load rating/kg | 3000 |
Total weight/kg | 8300 |
Max.Daylight /m-F | 7 |
Max.horizontal extension /m | 3.38 |
Min. turning radius /m | 4.58 |
Max.gradeability（No load）/% | 25 |
Frame left and right tilt Angle | |
Max.braking distance（No load） /m | 1(20km/h) |
Driving type | Torque converter |
First speed（forward）km/h | 5 |
Second gear speed（forward）km/h | 10 |
Third gear speed（forward）km/h | 18 |
Fourth gear speed（forward）km/h | 36 |
First speed（reverse）km/h | 8 |
Second gear speed（reverse）km/h | 12 |
Third gear speed（reverse）km/h | 30 |
Main arm rise time/s | 9’ |
Main arm descent time/s | 7‘ |
Telescopic arm extension time/s | 12’ |
Telescopic arm retraction time/s | 8‘ |
Principal dimension | |
Machine length /m-A | 5.23 |
Machine width /m-B | 2.2 |
Machine height /m-C | 2.3 |
Wheel Base /m-D | 3.05 |
Wheel track /m-E | 1.7 |
Min.ground clearance/m | 0.35 |
Max.outrigger width/m | |
Tyre | 16/70-20 |
Engine | |
Engine brand | Yunnei |
Rated power/kw | 76 |
Amount of oil filling amount | |
Hydraulic tank capacity/L | 130 |
Diesel tank capacity/L | 98 |
