It is widely used for ploughing, rotary-cultivating, sowing, irrigation, spraying, harvesting and transportation etc. In paddy fields, dry land, arid land, orchard and plastic greenhouse.
| Qingdao Haiju industrial Co.,Ltd | |||

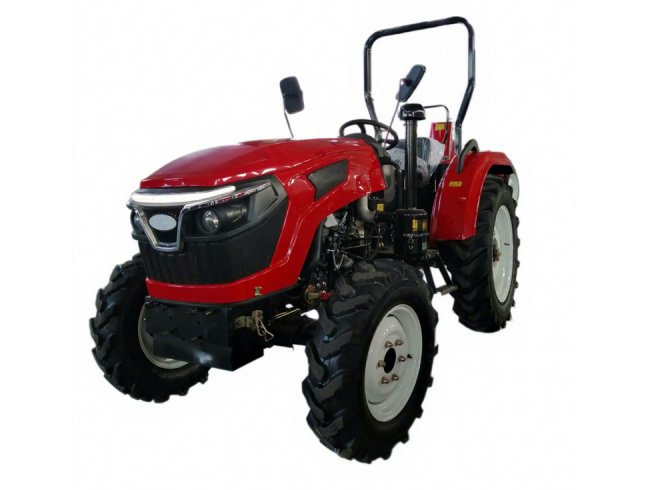

| 型号 MODEL | 单位 UNIT | TT404 | |
| 整机参数IMENSIONS OF TRACTOR | 型式 TYPE | / | 四轮驱动(4×4) DRIVE TYPE (4×4) |
| 功率 RATED POWER | kW | 29.5 （40hp） | |
| 外形尺寸(长×宽×高) DIMENSION (L×W×H) | mm | 3590×1500×2370 | |
| 轴距 WHEEL BASE | mm | 1820 | |
| 离地间隙 MIN.GROUND CLEARANCE | mm | 300 | |
| 最小使用质量 WEIGHT | kg | 1530 | |
| 轮距 front TREAD | mm | FRONT TREAD:1200(1200-1500 ADJUSTABLE ) | |
| 轮距 rear TREAd | mm | REAR TREAD:1200(1200-1500 ADJUSTABLE) | |
| 配套动力 MATCHED POWER | 离合器型式 CLUTCH TYPE | / | dry-type,single-action (option double-acting) |
| 发动机 ENGINE | / | 4缸 4CYLINDER | |
| 转速 RATED SPEED | r/min | 2400 | |
| 工作部分 WORKING PORTING | 档位 GEAR | / | 8F+2R |
| 动力输出轴型式 PTO TYPE | / | 6 spline、Φ35、(option 8 spline) | |
| 动力输出功率 PTO RATED POWER | kW | ≥25.1 | |
| 动力输出轴转速 PTO SPEED | r/min | 760 | |
| 液压系统 HYDRUALIC SYSTEM | 悬挂装置 THREE POINT LINKAGE | / | REAR, THREE-POINT SUSPENSION ,ⅠTYPE |
| 液压输出装置 HYDRUALIC OUTPUT DEVICE | / | 1way valve (option 2ways) | |
| 液压调节方式 HYDRUALIC ADJUSTMENT MODE | / | Forced hydrualic system | |
| 框架中心处最大提升力 MAX.LIFTING FORCE AT FRAME CENTER | kN | ≥7.1 | |
| 轮胎型号 TYRE TYPE | 标准轮胎型号(前/后) NORM TREAD SIZE （FRONT/ TEAR） | / | 7.50-16/11.2-24 |
